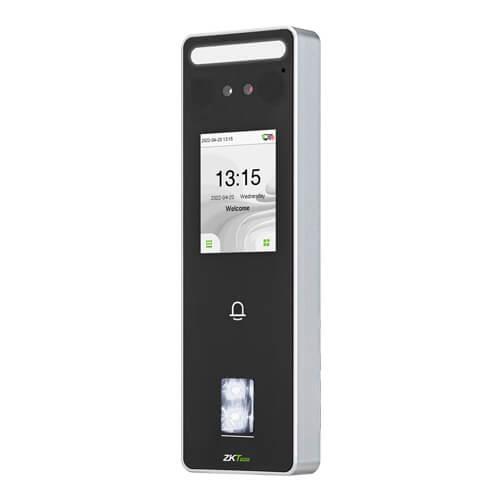

ZKTeco SpeedFace-V3L is an efficient Linux-based access control terminal, utilizing visible light technology for a comprehensive security management.
This terminal provides dual authentication methods, including facial recognition and fingerprint verification. Also, SpeedFace-V3L is equipped with an ultimate anti-spoofing algorithm for facial recognition against all types of fake photos and videos attack.
Additionally, there are different versions of SpeedFace-V3L to satisfy your needs. SpeedFace-V3L [QR] comes with a QR code module, while the SpeedFace-V3L [RFID] supports RFID cards verification function.
ZKTeco SpeedFace-V3L series is also compatible with ZKBio CVAccess software and ZKBio Zlink Mobile APP & ZKBio Zlink-Web when switching to BEST protocol.
Features of the ZKTeco SpeedFace-V3L
- An IP65 protection rating with waterproof and dustproof, can fully operate under extreme weather
- Multiple authentication methods: facial recognition, fingerprint, scramble QR code and RFID cards verification. Available card modules:125KHz ID card / 13.56MHz IC card
- Hidden supplement light design with adjustable brightness
- On board web server for system configuration
- High capacity for necessary record storage. Offers 200,000 transaction logs (Facial templates: 500 / Fingerprint capacity: 3,000 / RFID card capacity: 3,000)
Parameters
- Product ModeSpeedFace-V3L;
SpeedFace-V3L[QR];
SpeedFace-V3L[RFID] - Display2.4-inch ISP LCD touch Screen (240*320)
- CameraBinocular Camera@ 1MP
- Operation SystemLinux
- Hardware1.2GHz Dual Core CPU, 256MB RAM/512MB ROM, 1MP monocular Camera; Adjustable LED Supplement Light
- Authentication MethodSpeedFace-V3L: Fingerprint / Face / Card / Password (Virtual Keypad)
SpeedFace-V3L[QR]: Face / Card / Password (Virtual Keypad)
SpeedFace-V3L[RFID]: Face / Card / Password (Virtual Keypad) - Fingerprint Template CapacitySpeedFace-V3L: 3,000 (1:N) (Optional: 5,000), 3,000 (1:1) (Optional: 5,000)
SpeedFace-V3L[QR]: /
SpeedFace-V3L[RFID]: / - Face Template Capacity500 (1:N) (Optional: 1,500)
500 (1:1) (Optional: 1,500) - Card Capacity3,000 (1:N) (Optional: 10,000)
3,000 (1:1) (Optional: 10,000) - Transaction Capacity200,000
- Biometric Verification Speedless than 1 sec (Facial Recognition)
less than 0.3 sec (Fingerprint Recognition) - Touchless Biometric Recognition Distance0.5m to 2m (Facial Recognition)
- False Acceptance Rate (FAR) %FAR ≤ 0.01% (Visible Light Facial Recognition)
FAR ≤ 0.0001% (Fingerprint; ZKFingerprint V10.0) - False Rejection Rate (FRR) %FRR ≤ 0.02% (Visible Light Facial Recognition)
FRR ≤ 0.01% (Fingerprint: ZKFingerprint V10.0) - Biometric AlgorithmZKFace 3.5
ZKFingerprint V10.0 - Card TypeID Card@125 kHz (Optional)
IC [email protected] MHz (Optional) - QR CodeSpeedFace-V3L: /
SpeedFace-V3L[QR]: QR code, Bar code, PDF417 (Optional), Data matrix (Optional), MicroPDF417 (Optional), Aztec (Optional)
SpeedFace-V3L[RFID]: / - CommunicationTCP/IP * 1, Wi-Fi (Optional) , Wiegand Input * 1, Wiegand Output * 1, RS485*: ZKTeco RS485 * 1, Auxiliary Input, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1, Doorbell * 1
- Standard FunctionsADMS, DST, 14 digit User ID , Access Levels, Groups, Holidays, Anti passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods
- Power Supply12V 3A
- Operating Temperature-5°C to 45°C
- Operating Humidity10% to 90% RH (Non-condensing)
- Dimensions185*58.5*20mm (L*W*H)
- Gross Weight0.8 kg
- Net Weight0.3 kg
- Supported SoftwaresSoftware: ZKBio CVAccess / ZKBioTalk
Mobile App: ZSmart
Cloud Service: ZKBio Zlink - InstallationWall-mount (Compatible with Single Gang-Box)
- Ingress Protection RatingIP65
- CertificationsISO14001, ISO9001, CE, FCC
